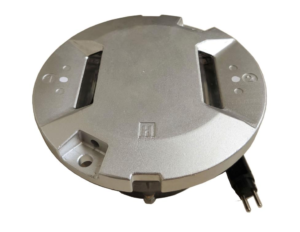

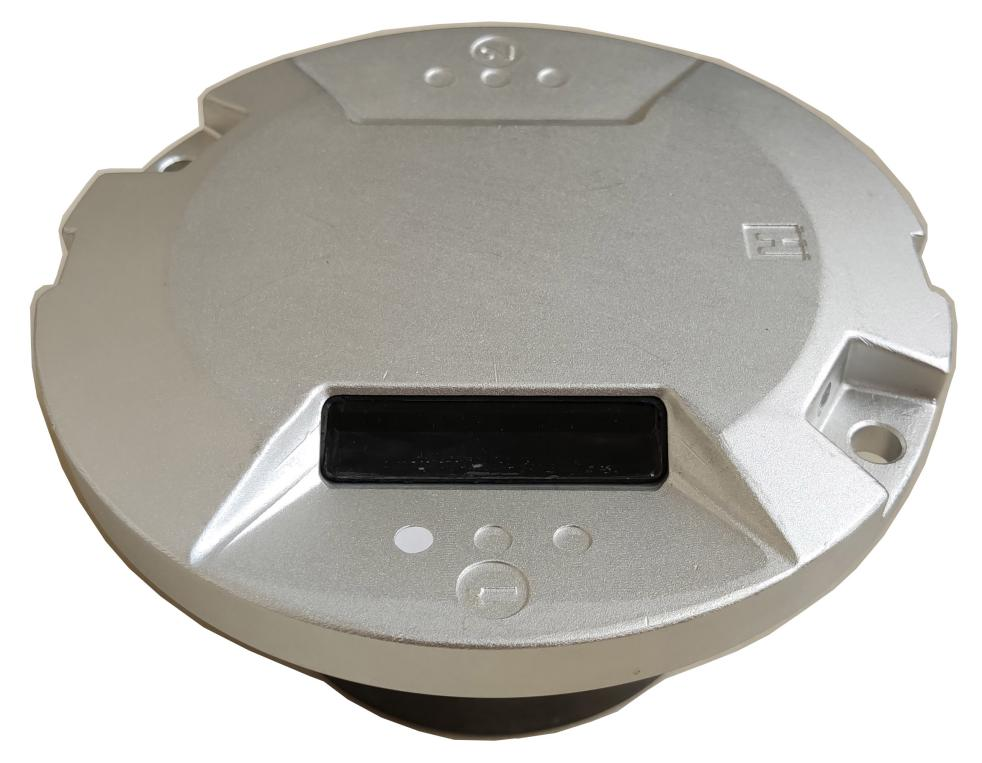

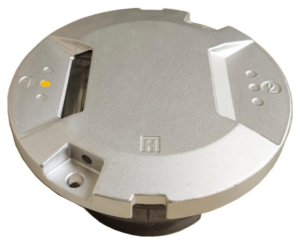

Insert Touchdown Zone Lights LED

Description

characteristics

• Design strictly follow CAAC Technical Requirements for Runway and Taxiway Aid Lighting Fixtures(AC-137-CA-2015-03-R1), and General Technical Requirements for LED Aid Lighting fixtures at Civil Airports (AC-137-CA-2015-01-R1)
• LED long life, energy saving, maintenance free and other characteristics of LED will bring huge economic benefits to customers.
• High-efficiency power factor correction circuit, effectively reducing interference with the power supply networ
• High frequency switching mode LED constant current circuit.
• High precision digital dimming, perfectly simulating the dimming curve of halogen light sources.
• Professional LED heat dissipation method, effectively reduce the working temperature of the light beads and drivers, to ensure the long service life of the LEDs.
• Adopting 125 degree high-temperature long-life electrolytic capacitors to enhance the stability of LED driving power supply.
• Main body is madeof aluminum alloy with special surface treatment, sturdy and high anti-corrosion
• Special design structure, with the lighting fixtureprotruding from the ground at a height of only 6.3
• The upper cover of the lighting fixtureadopts high-strength design and forging technology, with good mechanical performance, strong load-bearing capacity and shock resistance.
• The upper cover of the lighting fixture is smooth, without sharp corner angle to ensure that the aero tyre is not damaged
• The overall IP rating of the lighting fixtures reaches IP68, which prevent the light inside from the corrosion of dust and water and may bear 1380KPa instantaneous hydraulic shock.
• The glass cover is made of special tempered glass to prevent the glass cover from bursting due to drastic temperature changes.
• And the fasteners are made of high-quality stainless steel.
• Modularized and standardized design, convenient for maintenance.
