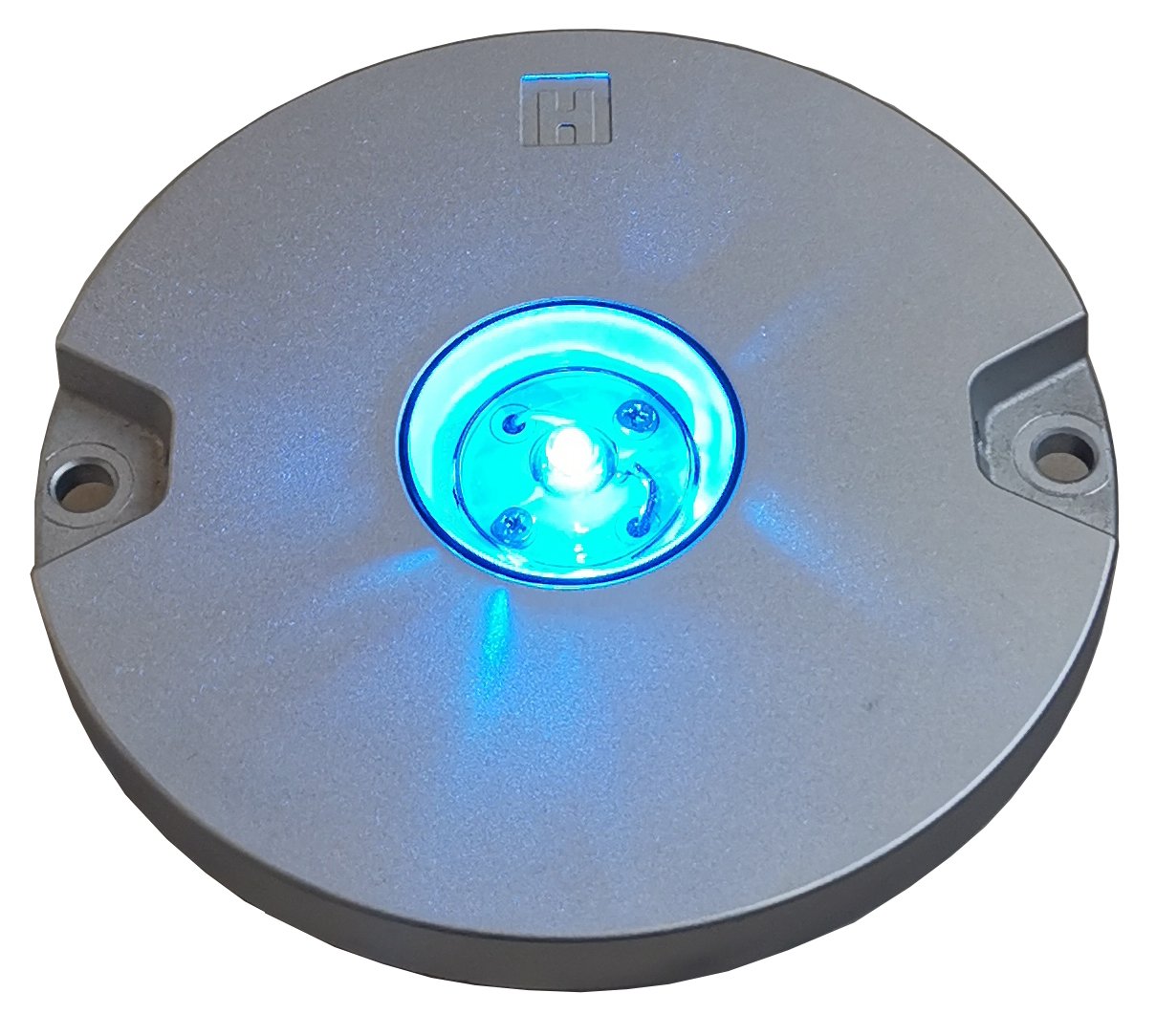

Insert Taxiway Edge Lights (LED)

Taxiway Edge Lights: the lights installed along both sides of the taxiway between the airport apron and the runway

Design specifications

CAAC : AC-137-CA-2015-03-R1,AC-137-CA-2015-01-R1

SAC : GB/T 7256-2005
ICAO:Annex 14– Airport Requirement

Technical index

Power supply: 2.8A to 6.6A series connected lighting circuit

Light source: LED

Power: 7W

Environment temperature: -40℃ ～ +55℃

Overall size: 203mm*203mm*150mm（without shallow base）/ 220mm*220mm*150mm（with shallow base）

Weight: 2.4Kg（without shallow base）/ 6.1Kg（with shallow base）
