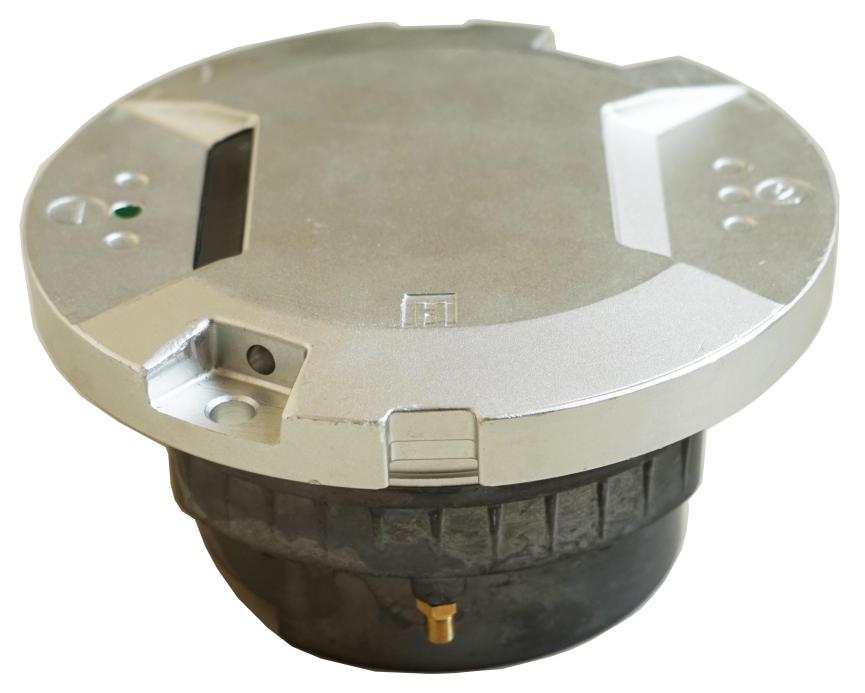

Taxiway Center line Lights: Lights insert in the pavement along the center line of the taxiway, which are used to display the center line of the taxiway at night or in low visibility conditions.
Design specifications
CAAC : AC-137-CA-2015-03-R1，AC-137-CA-2015-01-R1
SAC : GB/T 7256-2005
ICAO:Annex 14– Airport Requirement
Technical index
Power supply: 2.8A to 6.6A series connected lighting circuit
Light source: LED
Power:
| Type | HM-TCL-08(S)-GB(L) | HM-TCL-08(S)-YB(L) | HM-TCL-08(S)-YG(L) | HM-TCL-08(S)-YY(L) | HM-TCL-08(S)-GG(L) |
| Power | 6W | 6W | 8W | 8W | 7W |
Environment temperature: -40℃ ～ +55℃
Overall size: 203mm*203mm*150mm（without shallow base）/ 220mm*220mm*150mm（with shallow base）
Weight: 3.5Kg（without shallow base）/ 6.1Kg（with shallow base）
