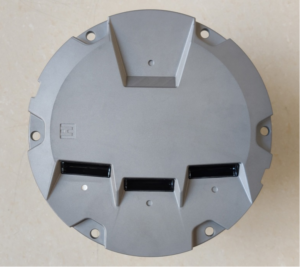

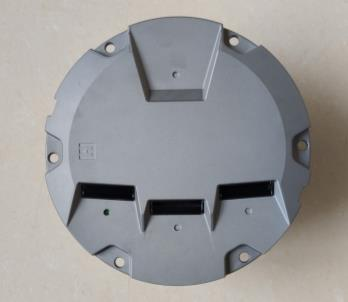

Insert Runway Threshold Wing Bar Light

Description

characteristics

• Design strictly follow CAAC Technical Requirements for Runway and Taxiway Aid Lighting Fixtures(AC-137-CA-2015-03-R1).
• The main body of the light is made of aluminum alloy material, and its surface has undergone anti-corrosion treatment. It is lightweight, sturdy, and features excellent anti-corrosion performance.
• Specially designed light structure, with the light protruding from the ground at a height of only 6.3
• The upper cover of the light adopts high-strength design and forging technology, with good mechanical performance, strong load-bearing capacity and impact resistance.
• The upper cover of the lighting fixture is smooth, without sharp corner angle to ensure that the aero tyre is not damaged
• The overall IP rating of the lighting fixtures reaches IP68, which may bear 138KPa internal pressure or water pressure formed by impact of the aircraft on the window;
• The glass cover is made of special tempered glass to prevent the glass cover from bursting due to drastic temperature changes.
• And the fasteners are made of high-quality stainless steel.
• Modularized and standardized design, convenient for maintenance.
