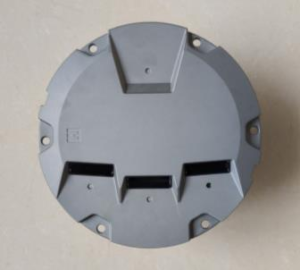

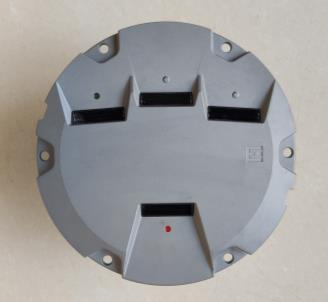

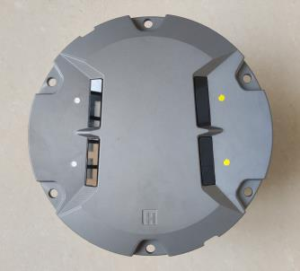

Insert Runway End/Threshold Light

Description

characteristics

• Design strictly follow CAAC Technical Requirements for Runway and Taxiway Aid Lighting Fixtures(AC-137-CA-2015-03-R1), and General Technical Requirements for LED Aid Lighting Fixtures in Civil Airports (AC-137-CA-2015-01-R1).
• LED long life, energy saving, maintenance free and other characteristics of LED will bring huge economic benefits to customers.
• High-efficiency power factor correction circuit, effectively reducing interference with the power supply networ
• High frequency switching mode LED constant current circuit.
• High precision digital dimming, perfectly simulating the dimming curve of halogen light sources.
• Professional LED heat dissipation method, effectively reduce the working temperature of the light beads and drivers, to ensure the long service life of the LEDs.
• Provide the functions of driver fault detection and load open-circuit detection. When a fault occurs, disconnect the secondary side of the isolation transformer.
• Adopting 125 degree high-temperature long-life electrolytic capacitors to enhance the stability of LED driving power supply.
• Main body is madeof light-weight aluminum alloy with special surface treatment. Lightweight, sturdy and high anti-corrosion
• Specially designed light structure, with the light protruding from the ground at a height of only 6.3
• The upper cover of the light adopts high-strength design and forging technology, with good mechanical performance, strong load-bearing capacity and impact resistance.
• The upper cover of the lighting fixture is smooth, without sharp corner angle to ensure that the aero tyre is not damaged
• The overall IP rating of the lighting fixtures reaches IP68, which may bear 138KPa internal pressure or water pressure formed by impact of the aircraft on the window;
• The glass cover is made of special tempered glass to prevent the glass cover from bursting due to drastic temperature changes.And the fasteners are made of high-quality stainless steel.
• And the fasteners are made of high-quality stainless steel.
• Modularized and standardized design, convenient for maintenance.
