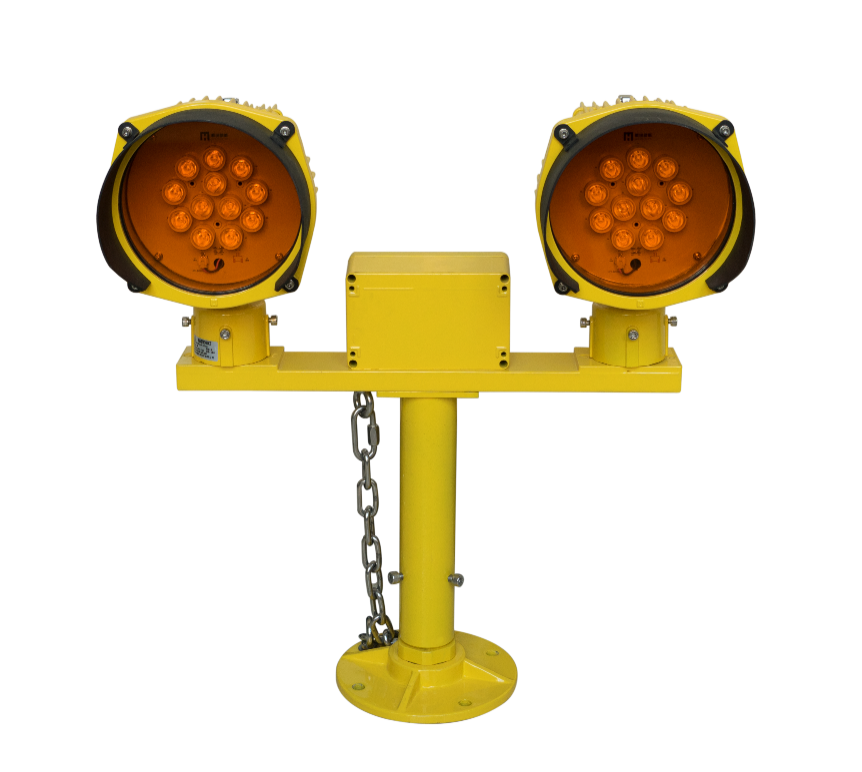

High Intensity Runway guard lights LED Configuration A

Runway guard lights: a lighting system to warn pilots, and drivers of vehicles when they are operating on taxiways, that they are about to enter an active runway. There are two standard configurations of runway guard lights: Configuration A (located at each side of the taxiway) and Configuration B (located across the taxiway)

Design specifications

CAAC : AC-137-CA-2015-03-R1，AC-137-CA-2015-01-R1

SAC : GB/T 7256-2005
ICAO:Annex 14– Airport Requirement

Technical index

Power supply: 2.8A to 6.6A series connected lighting circuit

Light source: Two 34-watt/6.6-ampere LED light sources work alternately.

Environment temperature: -40℃ ～ +55℃

Wind resistance: 480 Km/h

Overall size: 577mm*630mm*308mm

Weight: 12.6Kg
