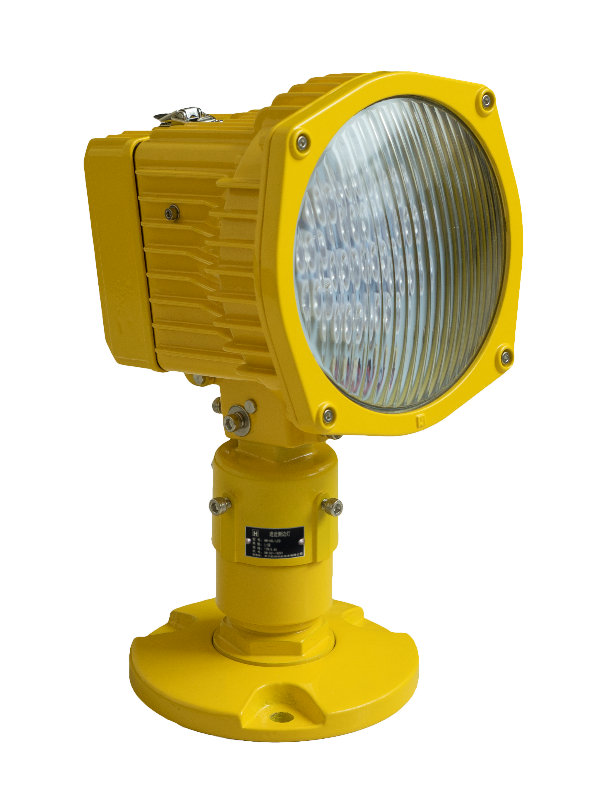

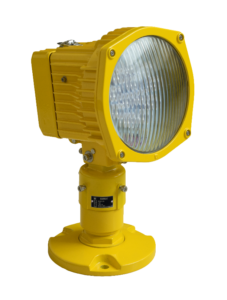

Elevated Runway End Light LED

Description

characteristics

• Design strictly follow CAAC Technical Specification of Runway and Taxiway Lights(AC-137-CA-2015-03) and General Technical Requirements for LED Aid Lighting Fixtures at Civil Airports (AC-137-CA-2015-01)
• The long lifespan, energy-saving and maintenance-free features of LED have brought about economic benefits.
• High-efficiency power factor correction circuits effectively reduce interference to the power supply network.
• High-precision digital dimming perfectly simulates the dimming curve of halogen light sources.
• Professional LED heat dissipation method effectively reduces the operating temperature of the light beads and the driver, ensuring the long service life of the LED.
• Adopt 125-degree high-temperature long-life electrolytic capacitors to enhance the operational stability of the LED driver power supply.
• Provide the functions of driver fault detection and load open-circuit detection. When a fault occurs, disconnect the secondary side of the isolation transformer.
• Compact overall structure, attractive Small windward area and strong wind resistance (capable of withstanding a wind speed of 480 km/h).
• The rear cover of the light head is designed with a buckle mechanism, which makes it convenient for users to replace the LED driver power supply.
• The light head is equipped with a fixed position for angle measurement and calibration, which facilitates the calibration of the angle position during installation.
• The main body of the light is made of aluminum alloy material, with special surface It is lightweight, sturdy, and features excellent anti-corrosion performance.
• The overall protection level of the light reaches IP54, effectively preventing the intrusion of dust, rainwater and other substances into the interior of the light.
• The glass cover is made of special tempered glass to prevent the glass cover from bursting due to drastic temperature changes.
• The fasteners are made of stainless steel, which is durable and long-lasting.
• The frangible components are precisely machined by mechanical means and comply with the requirements of CAAC (Civil Aviation Administration of China) and FAA (Federal Aviation Administration), featuring stable and reliable performance.
• Modularized and standardized design, convenient for replacement.
